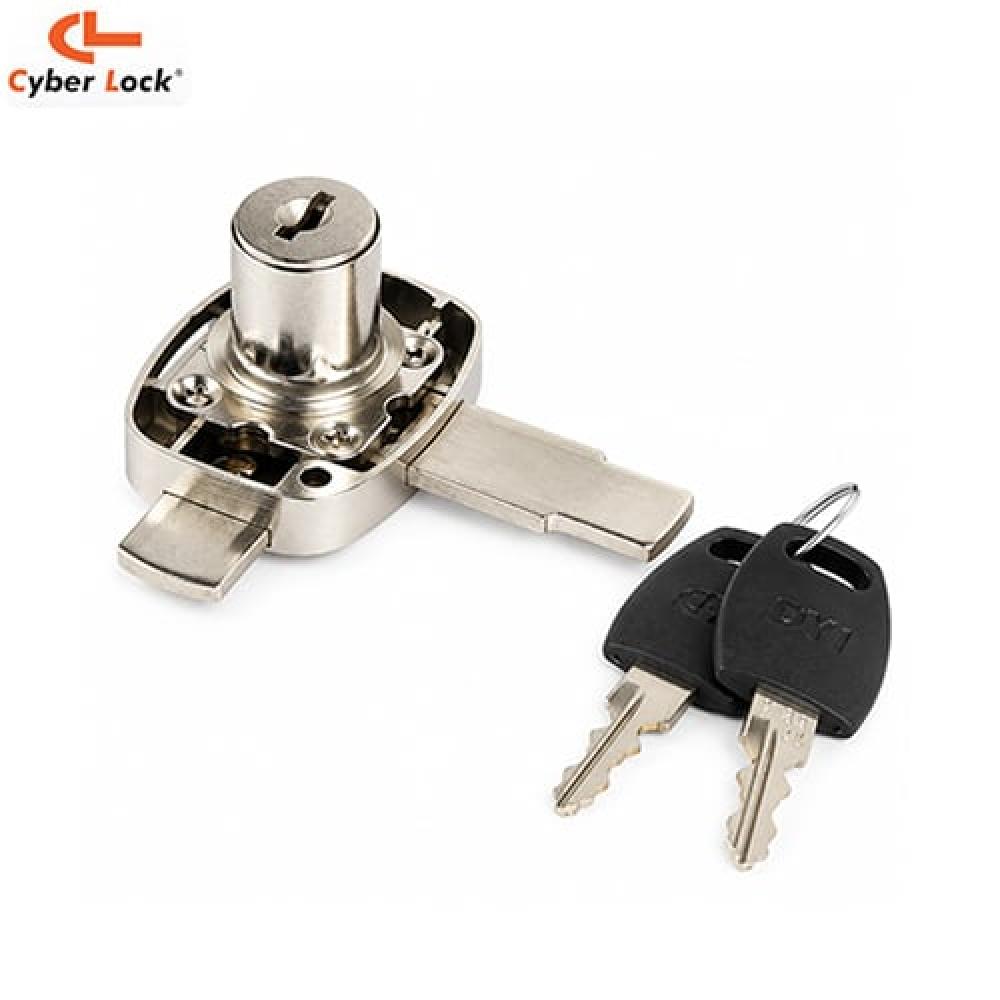

Double-Cam Wooden Cabinet Lock with Key – 16.5 mm Diameter
A lock designed for wooden cabinets and wardrobes, featuring two key-operated locking cams. Suitable for double-door cabinets, with the option to use it on certain single-door cabinets.
Features
- Equipped with two locking cams.
- 360° key rotation for locking and unlocking.
- Click-action locking mechanism.
- Lock body made of zinc.

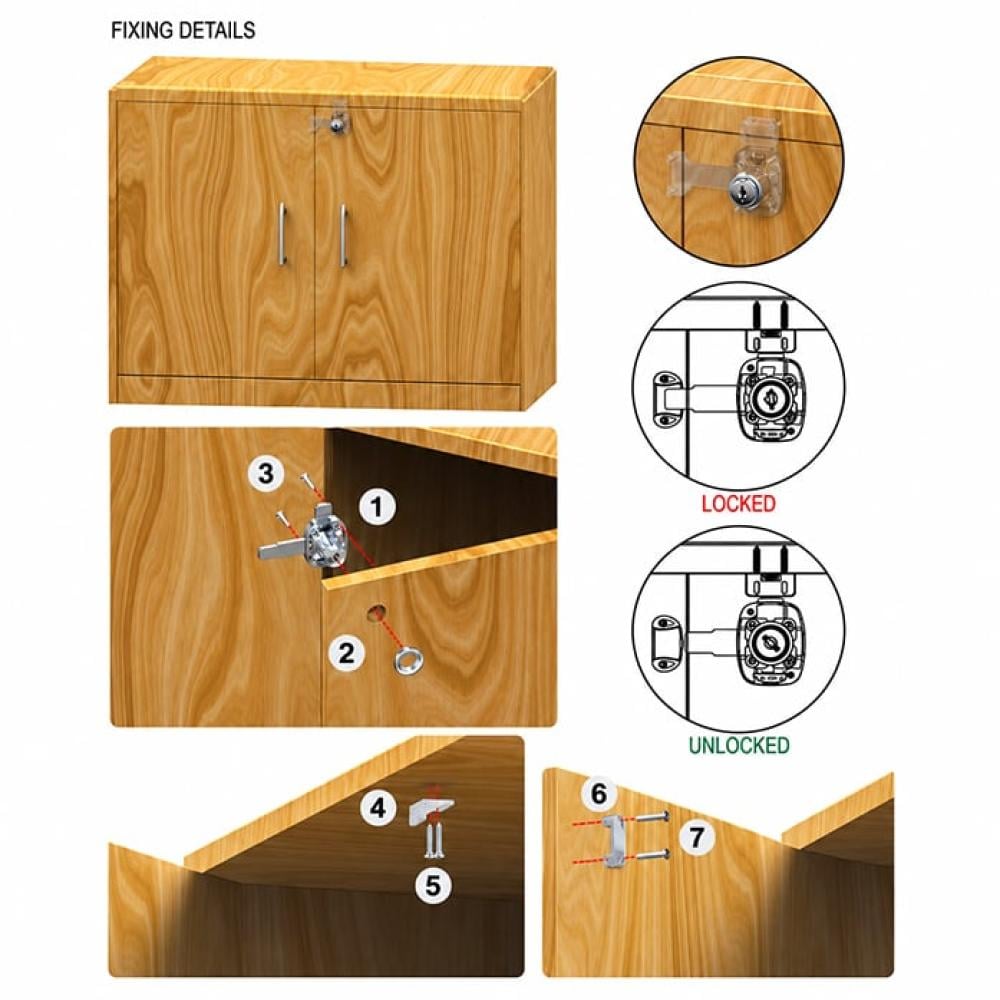

- Suitable for double-door or single-door cabinets, depending on the installation method.
- The key cannot be removed when the lock is in the unlocked position.
- Supplied with 2 keys.

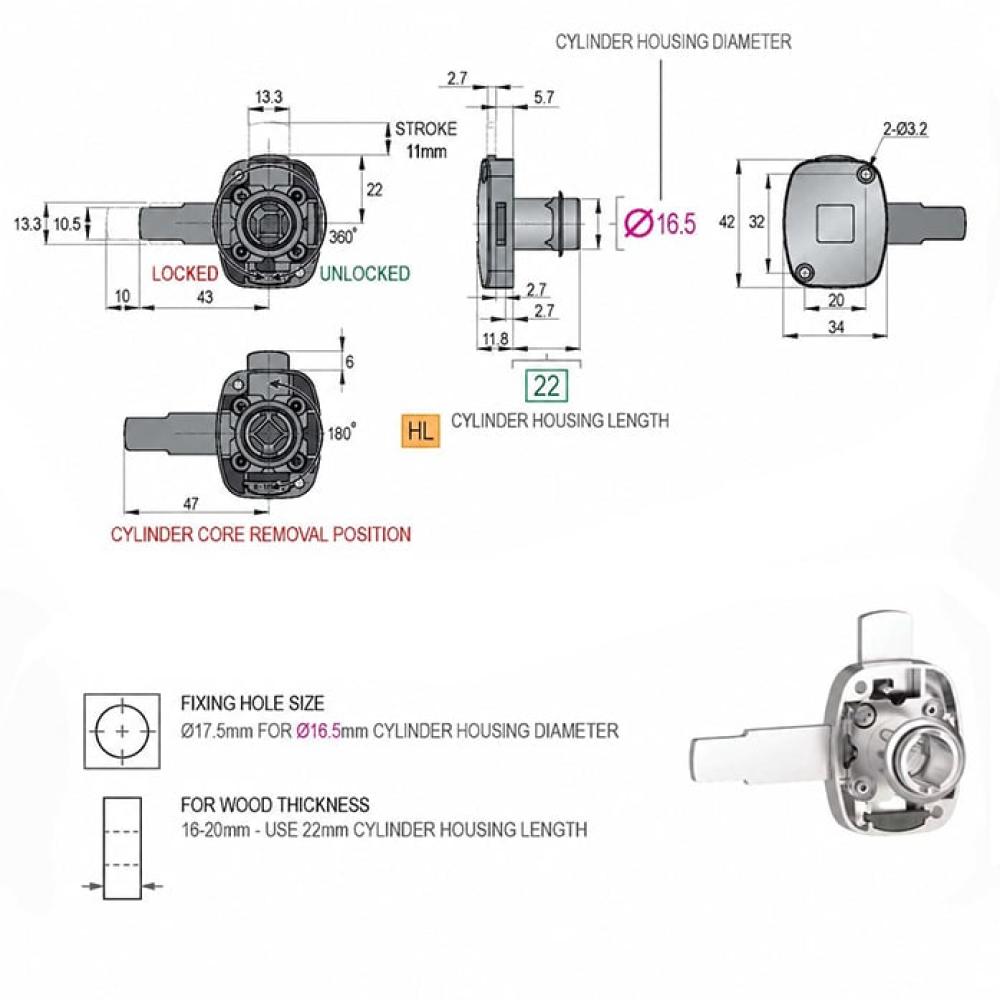

Dimensions
- Lock body diameter: 16.5 mm.
- Lock body length: 22 mm.
- Mounting hole diameter: 17.5 mm.
- Suitable for wood thicknesses from 16 to 20 mm.
Applications
Suitable for wardrobes, wooden cabinets, and furniture doors.
✅ Made in Thailand
