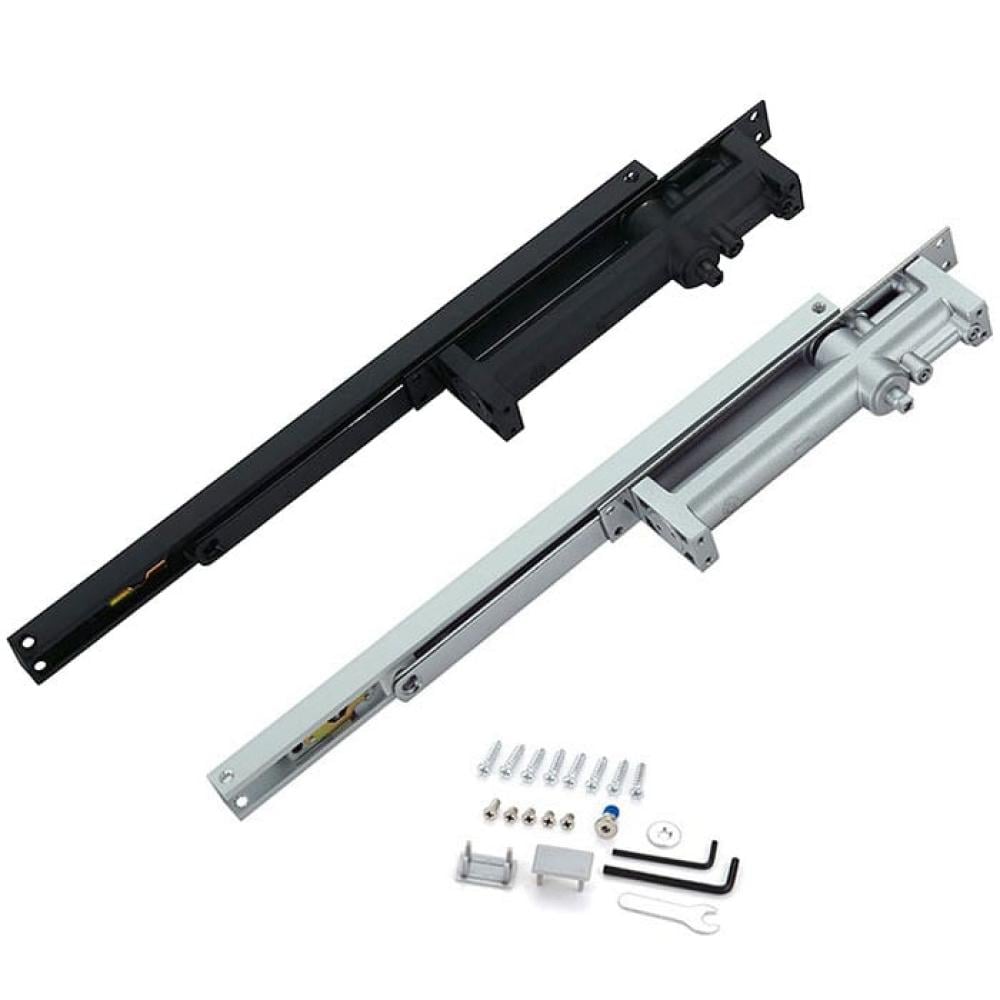

📌 Concealed Door Closer – 32mm Thickness / Load Capacity 45–65 kg
Concealed hydraulic door closer with 32mm thickness, designed to be installed inside the door or frame for a clean and modern appearance without visible hardware. Operates with a sliding rail mechanism for smooth motion, with a hold-open option to keep the door open when needed. Suitable for modern interiors requiring an elegant hidden solution.
Features:
- Fully concealed inside the door for a seamless look
- 32mm body thickness, suitable for 42mm door thickness
- Load capacity 45–65 kg
- Suitable for door width up to 950 mm
- Sliding rail system with hold-open function
- Quiet and smooth closing without slamming
- Available in Silver and Black
Specifications:
- Name: Concealed Door Closer – 32mm Thickness
- Load capacity: 45–65 kg

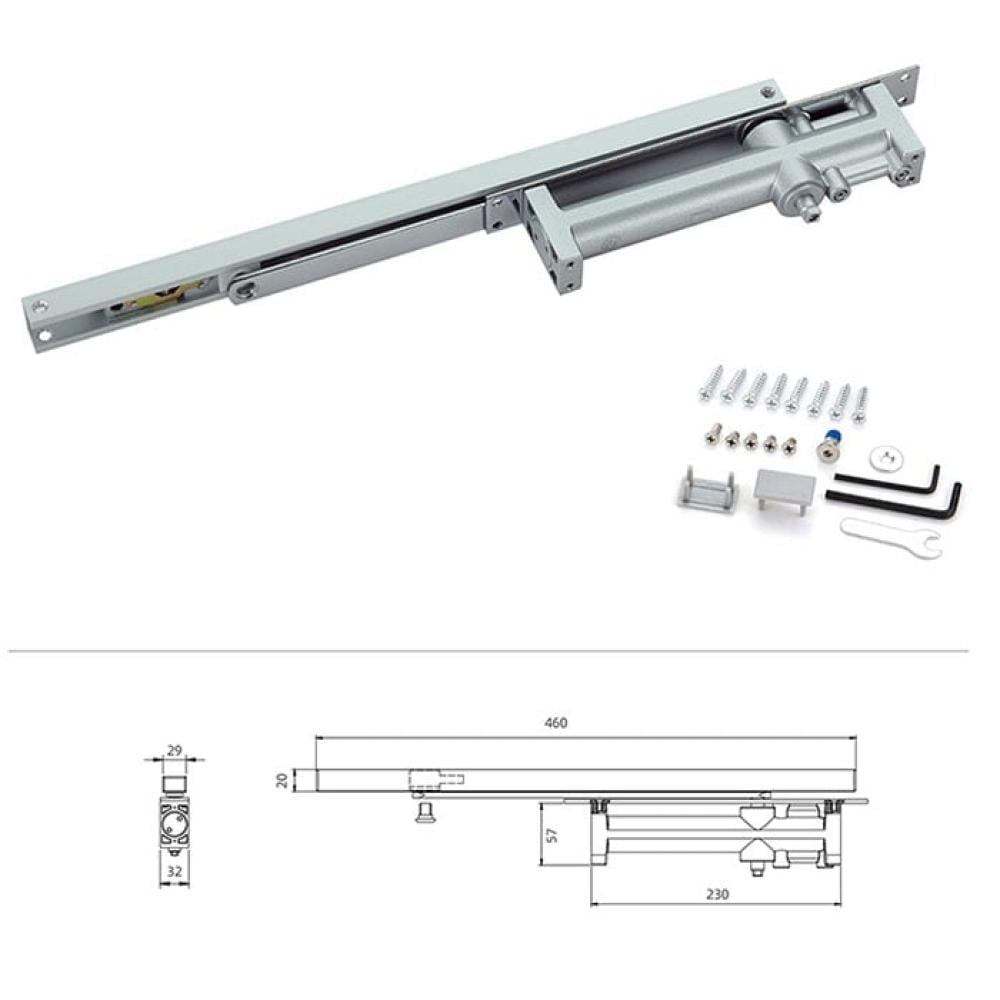

- Product dimensions: 230 × 57 × 32 mm
- Thickness: 32 mm
- Mounting hole distance: 230 × 19 mm
- Suitable for 42mm door thickness
- Includes complete installation accessories
Suitable for:
- Modern residential interior doors
- Hotels, offices, and luxury projects
- Hidden installation applications
- Spaces requiring a clean and elegant finish
