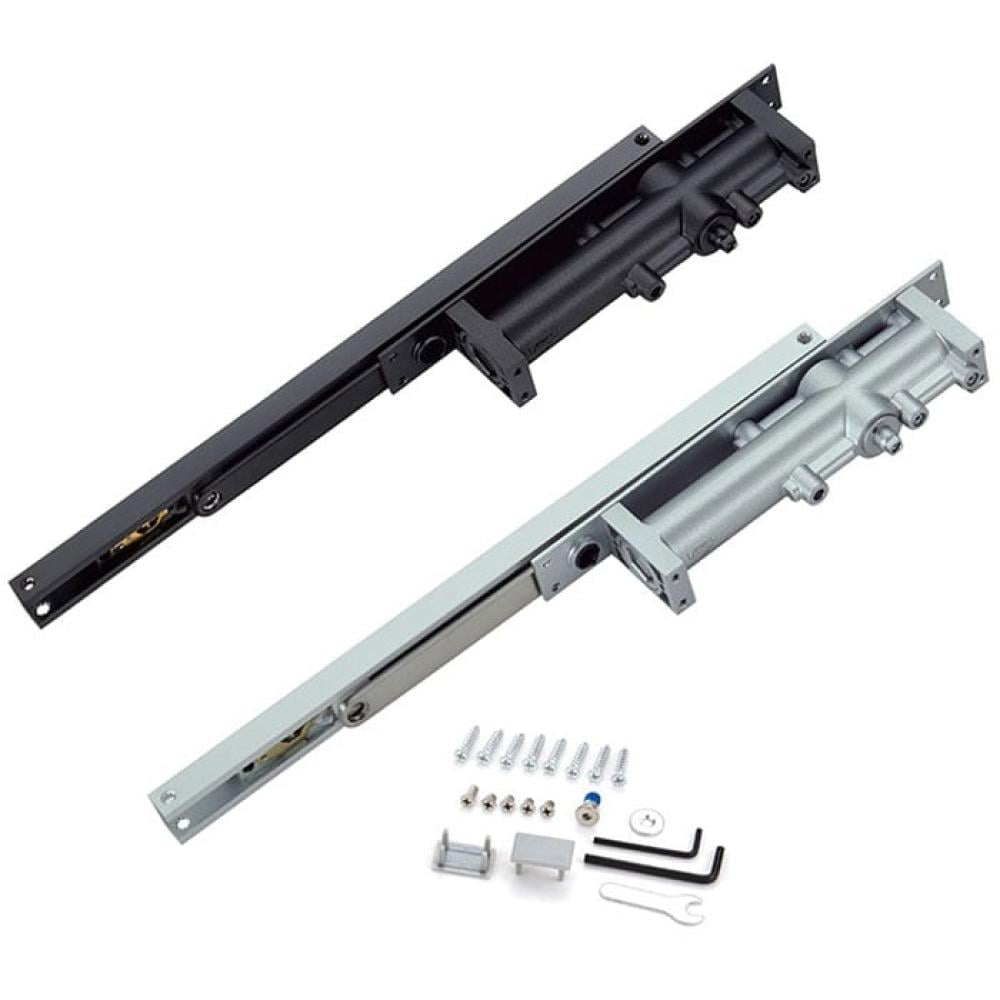

📌 Concealed Door Closer – 37mm Thickness / Load Capacity 80–100 kg
Heavy-duty concealed hydraulic door closer with 37mm body thickness, designed to be installed inside the door for a clean and seamless look without visible hardware. Operates through a sliding rail mechanism for smooth movement, featuring a hold-open rail option that allows keeping the door open when needed. Ideal for large and high-traffic doors in premium projects.
Features:
- Fully concealed installation for an elegant modern appearance
- 37mm thickness, suitable for 47mm door thickness
- Load capacity 80–100 kg for heavy doors
- Suitable for door width up to 1250 mm
- Sliding rail system with hold-open function
- Quiet closing with anti-slam stability
- Available in Silver and Black
Specifications:
- Name: Concealed Door Closer – 37mm Thickness
- Load capacity: 80–100 kg

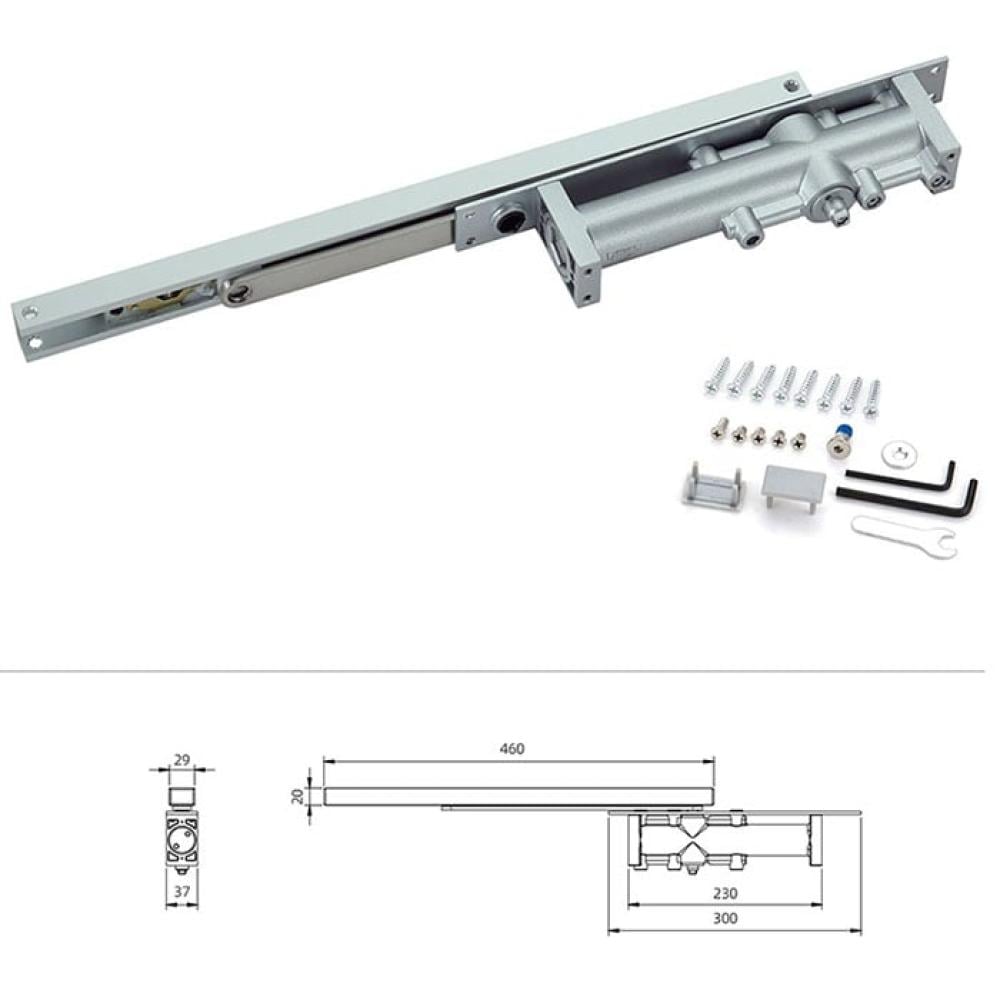

- Product size: 230 × 61 × 37 mm
- Thickness: 37 mm
- Mounting hole distance: 230 × 19 mm
- Suitable for 47mm door thickness
- Comes with full installation hardware and accessories
Suitable for:
- Heavy interior and exterior doors
- Hotels, commercial buildings, and large projects
- Modern offices and main entrances
- Spaces requiring a hidden high-capacity closer
