📌 Slim Concealed Door Closer – 23mm Thickness / Load Capacity 25–45 kg

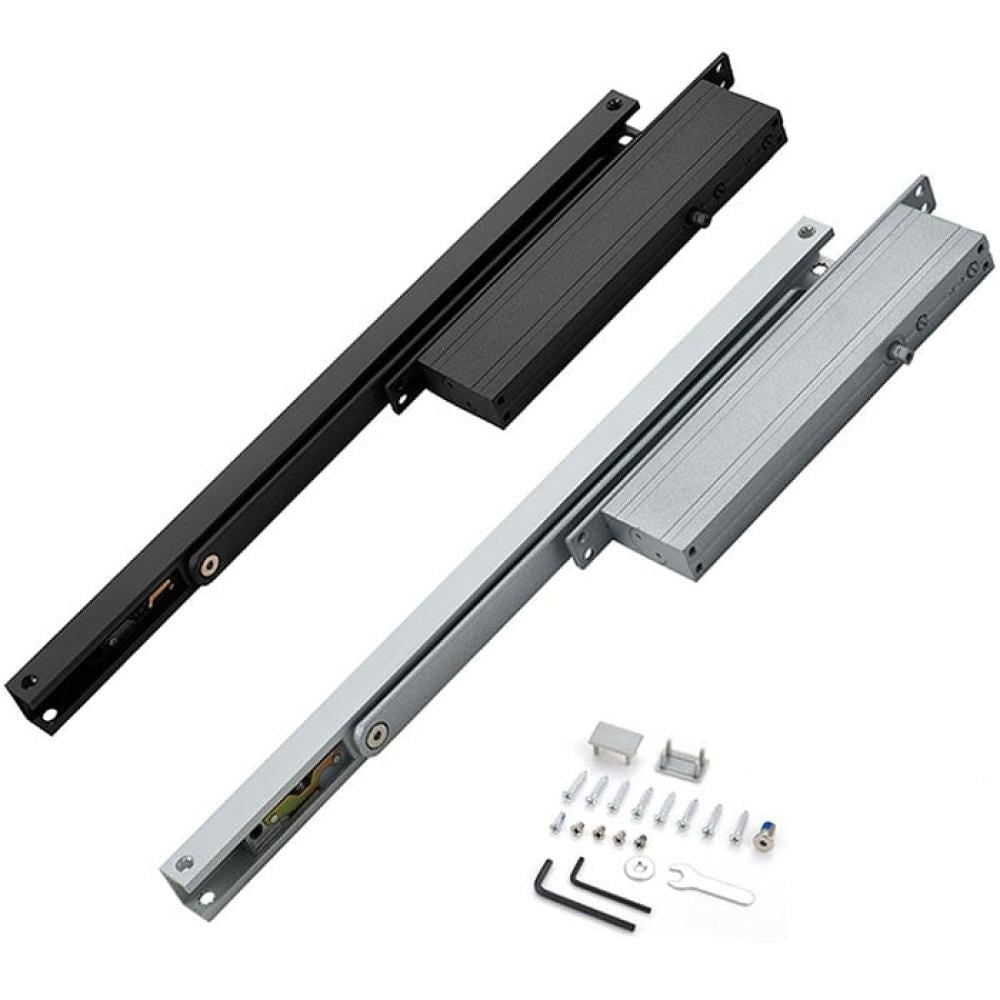

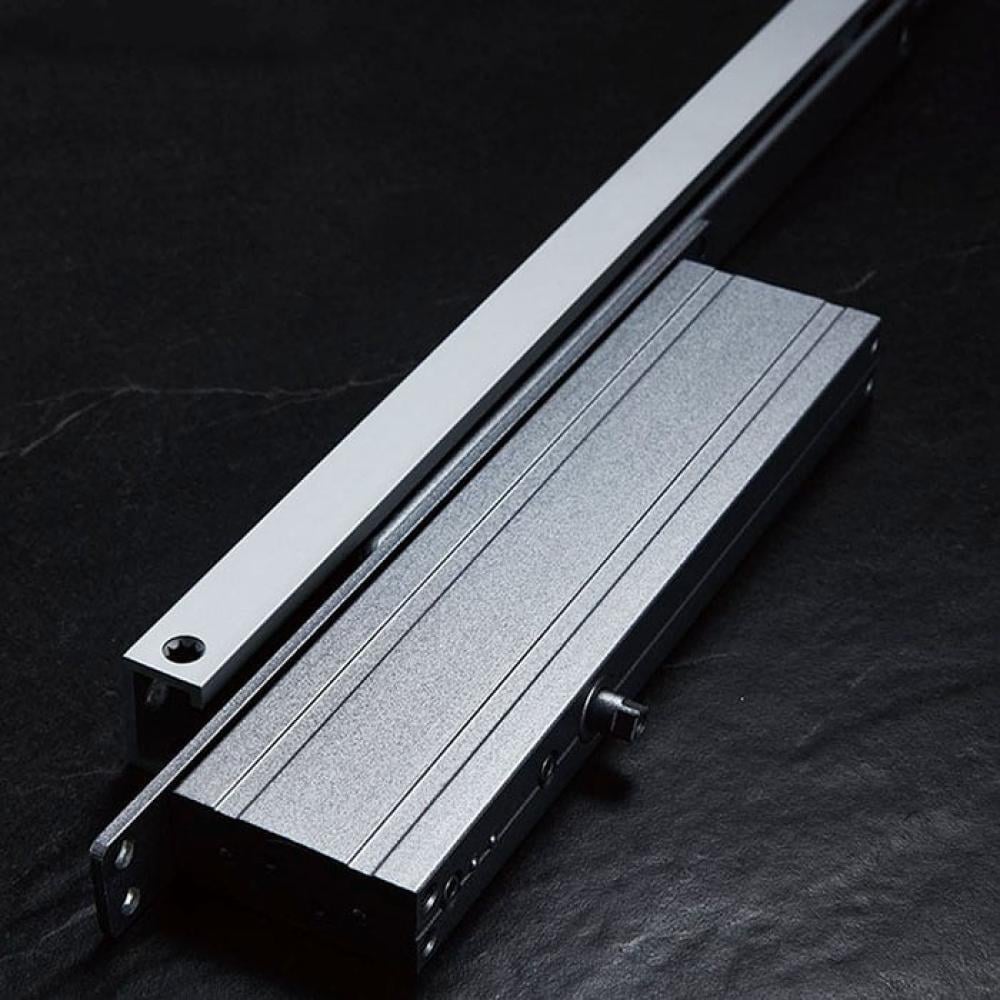

Slim-style concealed hydraulic door closer with 23mm thickness, designed for thin doors and installed internally to give a clean, elegant look with no visible hardware. Operates through a smooth sliding rail system with a hold-open option, making it ideal for modern interior doors in homes and offices.
Features:
- Slim concealed design for a neat and seamless appearance
- 23mm body thickness suitable for 34–35mm door thickness
- Load capacity 25–45 kg
- Suitable for light to medium interior doors
- Sliding rail system with hold-open function
- Soft and quiet closing without slamming
- Available in Silver and Black
Specifications:
- Name: Slim Concealed Door Closer – 23mm Thickness
- Load capacity: 25–45 kg

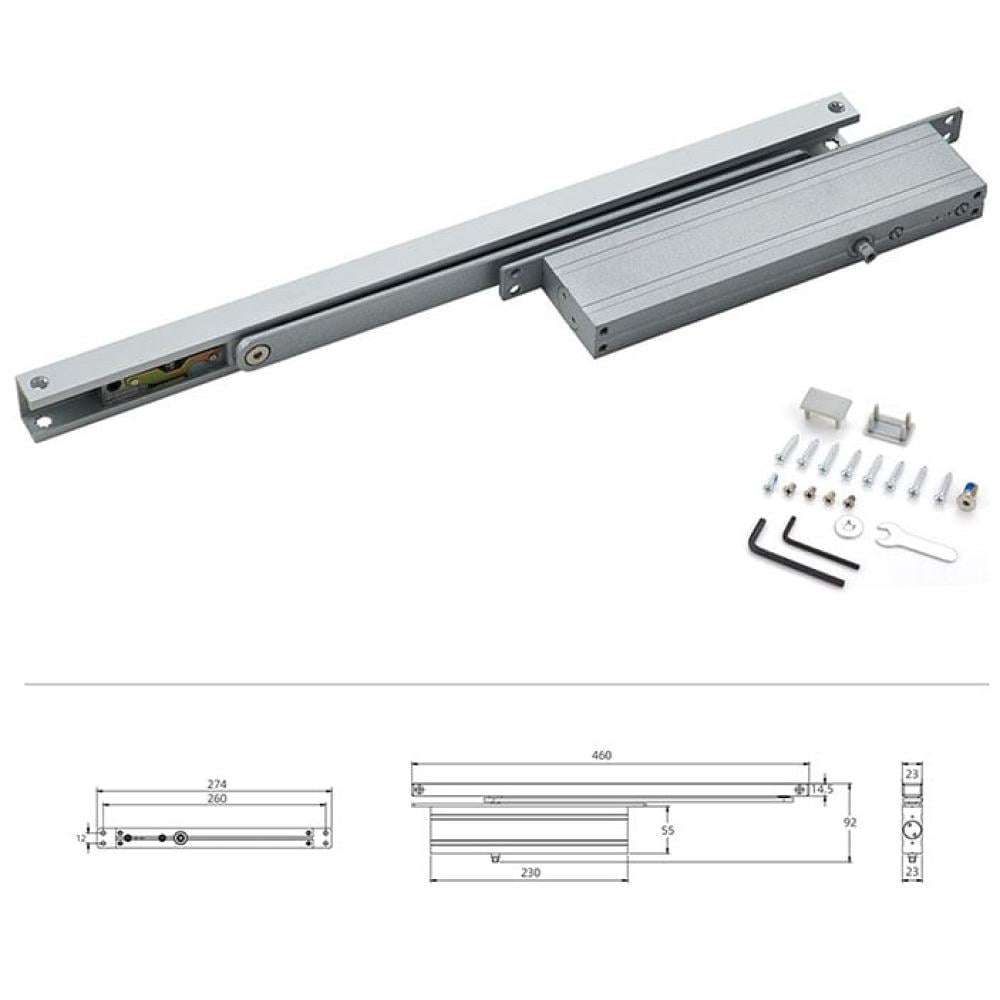

- Size: 230 × 55 × 23 mm
- Hole distance: 218 × 20 mm
- Body thickness: 23 mm
- Suitable for door thickness 34–35 mm
- Includes full installation accessories
Suitable for:
- Interior room doors and passage doors
- Home and office use
- Projects requiring a compact concealed closer
- Modern spaces with minimal design style
