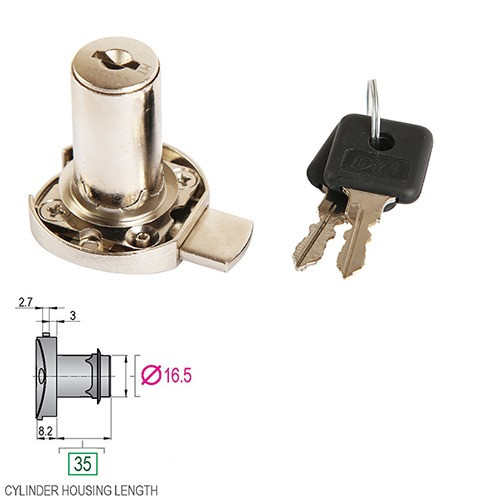

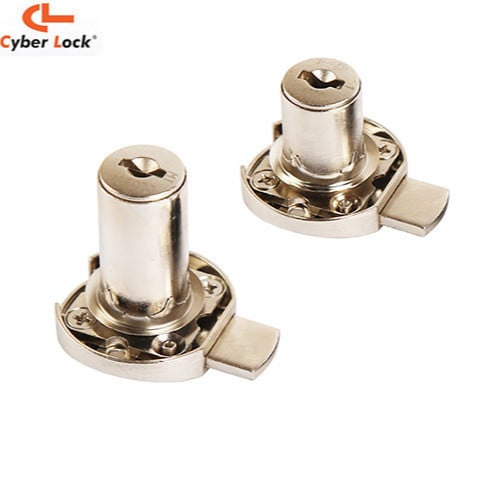

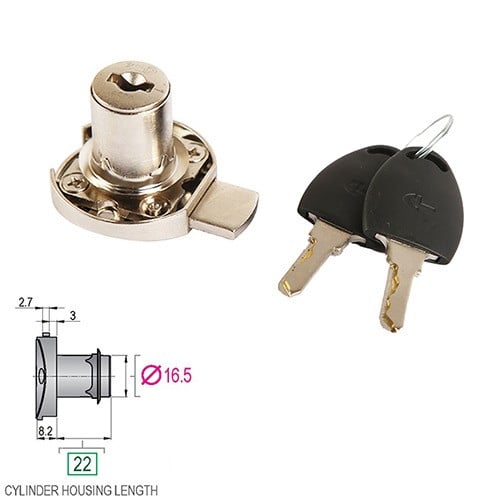

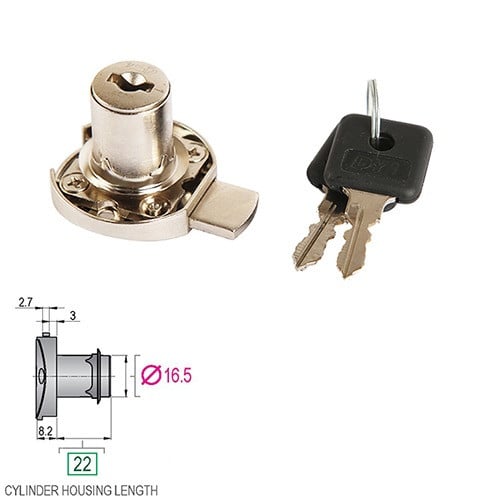

Round Drawer Lock

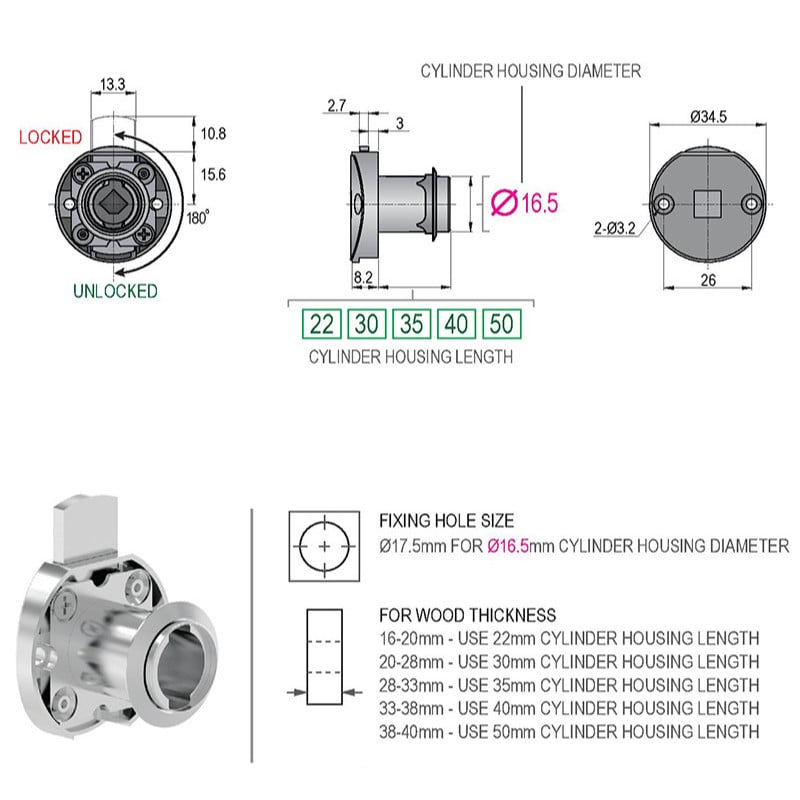

Fixing Hole Size :
Ø17.5mm For Ø16.5mm cylinder housing diameter
For Wood Thickness:
16-20mm - use 22mm cylinder housing length
20-28mm - use 30mm cylinder housing length
28-33mm - use 35mm cylinder housing length
33-38mm - use 40mm cylinder housing length
38-40mm - use 50mm cylinder housing length
Made in Thailand
