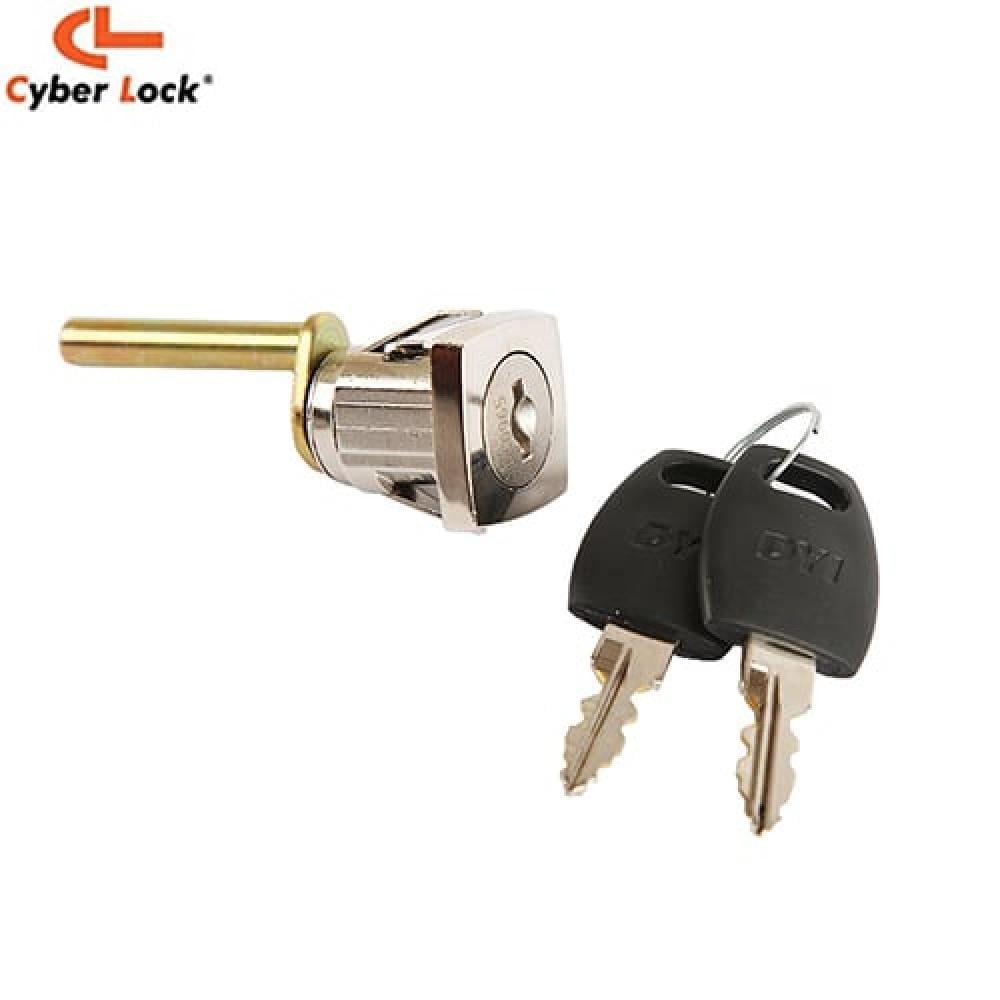

Drawer Lock for Metal Furniture (Cyber Lock)
Description:
The Drawer Lock for Metal Furniture (Cyber Lock) is an ideal solution for securing drawers and metal cabinets. The lock features a durable design and a quick-fix installation mechanism, enabling efficient and reliable setup. With a 180° rotation angle, it ensures smooth opening and closing while providing maximum security.

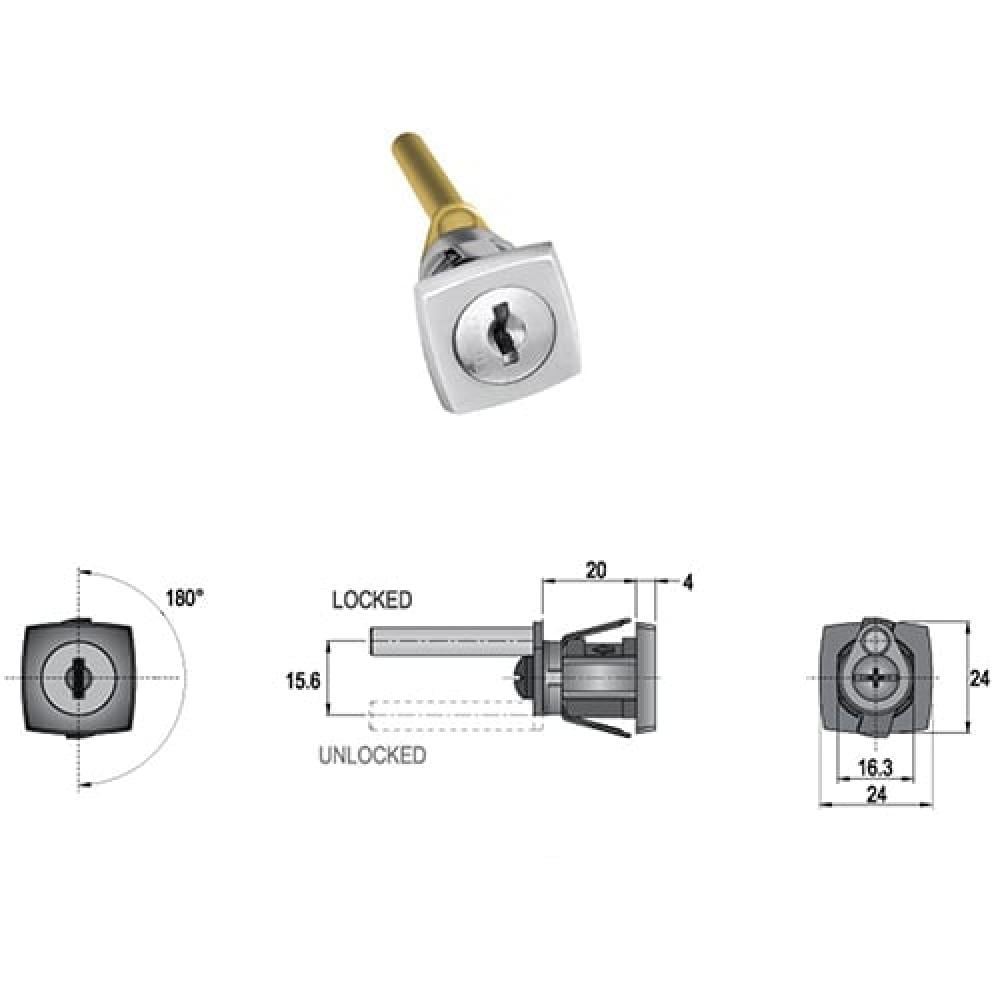

Technical Specifications:
- Rotation Mechanism: 180° (Lock/Unlock)
- Mounting Hole Diameter: Ø19 mm
- Suitable Metal Thickness: 0.6-0.9 mm (after painting)
- Dimensions:Overall Length: 24 mm
- Handle Depth: 20 mm
- Base Width: 16.3 mm
- Material: Zinc Alloy
Features:
- 180° Rotation Angle: Allows easy and flexible operation for locking and unlocking.
- Quick Installation: Simple and effective installation process.
- Key Removal in Both Positions: The key can be removed in both locked and unlocked positions.
- Master Key System: Supports master and non-master key systems for added flexibility.
- High-Quality Material: Made from corrosion-resistant zinc alloy for durability.
- Compact Design: Fits seamlessly with modern and classic metal drawer and cabinet designs.

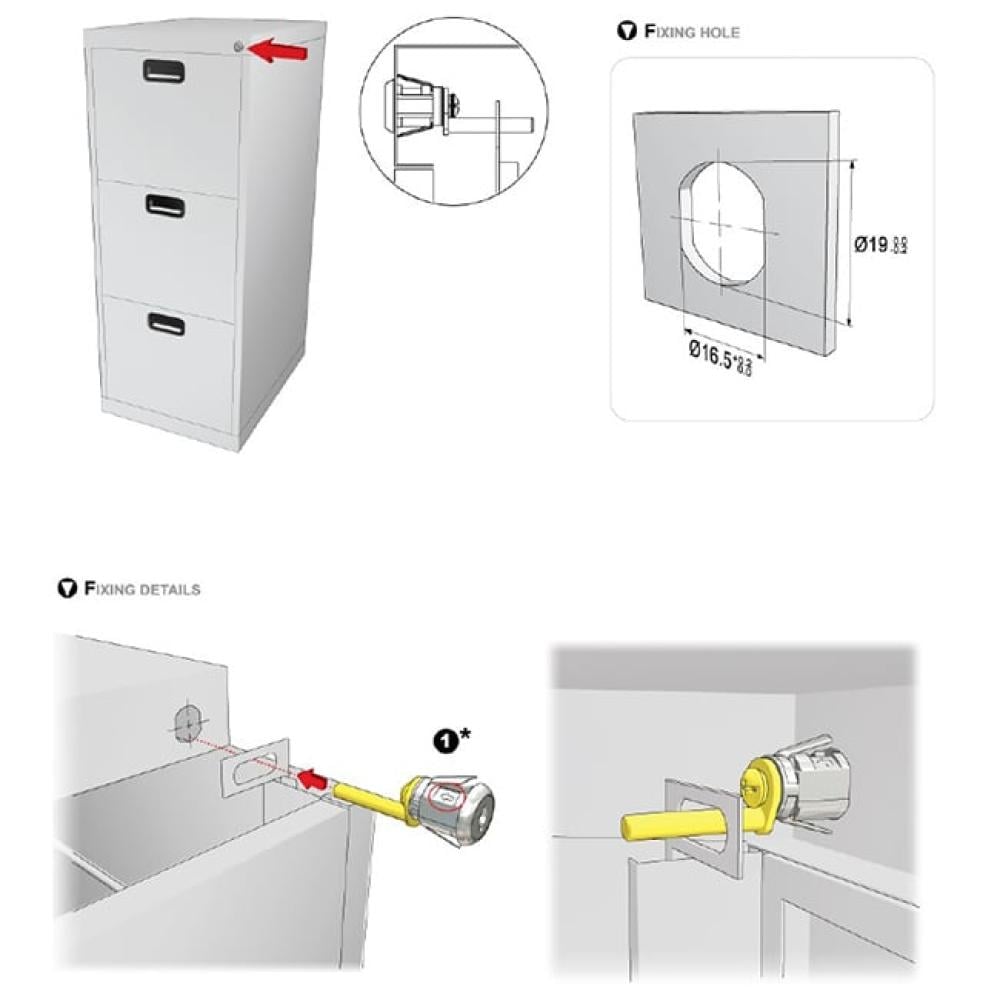

Installation Instructions:
- Mark the Position: Drill a Ø19 mm hole at the desired location.
- Insert the Cylinder: Place the lock securely in the pre-drilled hole.
- Attach the Cam: Fix the locking cam in position.
- Secure the Lock: Tighten the lock using the provided screws.
- Test Operation: Verify that the 180° rotation operates smoothly with the key.
✅ 180° Rotation for Smooth and Flexible Operation
✅ Quick and Reliable Installation
✅ Dual Key System for Added Convenience
✅ Corrosion-Resistant Zinc Alloy Build
✅ Supports Master Key Systems
✅ Made in Thailand 🇹🇭
